Ex-DGM II 2G Ex d e IIC T6 Gb II 1/2D Ex ta/tb IIIC T80 ºC Da/Db Ex-DGM525 Technical data Pressure connection External thread G 1/2 to DIN 16 288 and internal thread G 1/4 to ISO 228 Part 1 (permissible up to 4 bar). Switching device Seawater resistant die cast aluminium GD AI Si 12. Protection class IP 65 Pressure sensor materials See Product Summary Ambient temperature –20 to +60°C. At ambient temperatures below 0°C, ensure that condensation cannot occur in the sensor or in the switching device. Maximum working pressure See Product Summary Mounting Either directly on the pipe or with two 4 mm ø screws on the wall surface. Mounting position Vertically upright Setting Continuously adjustable via the setting spindle with a screw driver. The set switching pressure is visible in the scale window. Switching differentials Largely independent of the set switching pressure. Not adjustable. For values see Product Summary. Pressure measuring connection Care must be taken to ensure that a pressure measuring connection is availab

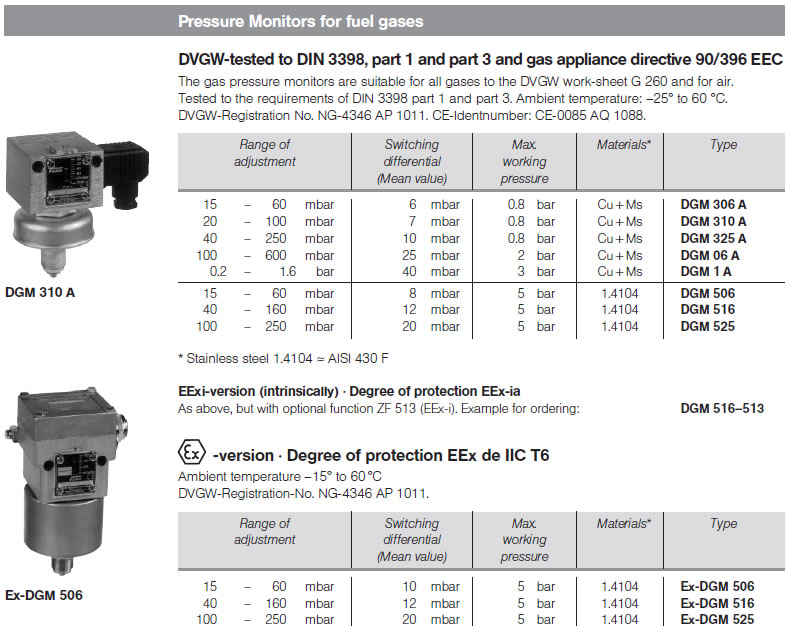

6 Switching 250 VAC 250 VDC 24 VDC capacity (ohm) (ind) (ohm) (ohm) Ex-d 3 A 2 A 0.1 A 3 A DVGW tested DVGW tested to DIN EN1854 Gas pressure monitors are suitable for all gases in accordance with DVGW work sheet G260 and for air. SIL 2 according IEC 61508-2 Type Setting range Switching differential (Tolerance) Max. working pressure Materials in contact with medium Dimensioned drawing page 21+22 Ex-DGM506 15…60 mbar 7 ... 11 mbar 5 bar 1.4104 Ex-DGM516 40…160 mbar 3 ... 18 mbar 5 bar 1.4104 4 + 12 Ex-DGM525 100…250 mbar 3 ... 18 mbar 5 bar 1.4104
