DPTE50S,DPTE100S,DPTE500S,DPTE1000S,DPTE100,DPTE250,DPTE500,DPTE1000,DPTE50SD,DPTE100SD,DPTE500SD,DPTE1000SD,
DPTE100D,DPTE250D,DPTE500D,DPTE1000D,DPTE5000D,DPTE52S,DPTE102S,DPTE102,DPTE252,DPTE502,DPTE1002,DPTE5002 |
 |

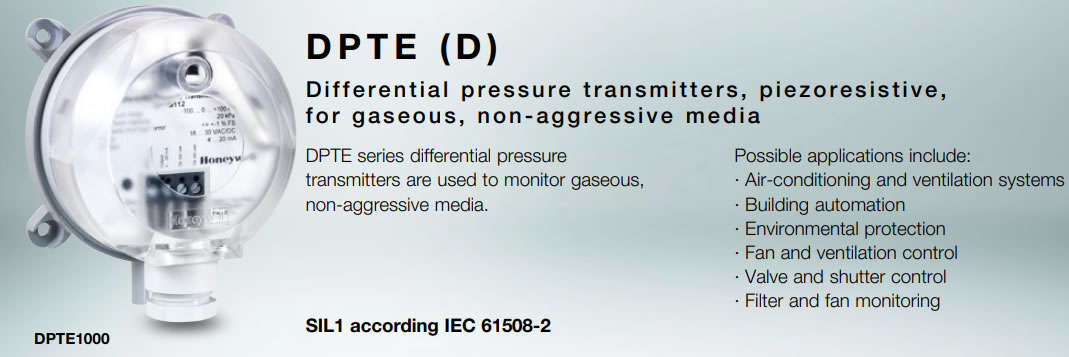

| DPTE (D) Differential pressure transmitters, piezoresistive, for gaseous, non-aggressive mediaDPTE series differential pressure transmitters are used to monitor gaseous, non-aggressive media. SIL1 according IEC 61508-2 Possible applications include: · Air-conditioning and ventilation systems · Building automation · Environmental protection · Fan and ventilation control · Valve and shutter control · Filter and fan monitoringTechnical data Pressure media Air, and non-combustible and non-aggressive gases. Pressure Plastic connection piece connection with 6 mm external diameter for measuring hose with 5 mm internal diameter. Connector P 1 for higher pressure, P 2 for lower pressure. Cable entry / M 20 x 1.5, screw electrical terminals for wires and connection leads with conductor cross-section up to 5– 10 mm2 . Degree of IP 54 with cover, protection IP 00 without cover according to DIN 40050 Mounting Any mounting position possible, with screws supplied Materials Transmitter housing and pressure connection P2 made of ABS, light grey. Fastening element with pressure connection P1 made of POM, white. Long-term stability -50 Pa - 1000 Pa ≤ 2.5; in % FS/year 1000/2500 Pa ≤ 1.5 Repetition accuracy < ± 0.2% of final value Linearity and < ± 1% of end value switching differetial factor Response time switchable 100 ms/1sec Medium and am- 0°C to +50°C bient temperature Permitted air 0–95% non-condensing humidity Operating voltage 18...30 V AC/DC, 18...30 V DC (2-wire) Power consumption Max. 1 W Output signal 0–10 V, short-circuitproof to ground 4–20 mA, short-circuitproof ≤ 30 mA Housing dimensionsDiameter and weight 85 mm x 58 mm, 130 g Standards and EN 60770, EN 61326 conformity Supplied 2 m silicone hose, accessories: 2 connection pieces with fastening screws, 2 self-tapping screws for fastening the housingType Default operating range in Pa Operating range extended by jumpers in Pa Differential pressure transmitter, 3-wire without digital display, output signal 0-10 V und 4-20 mA current consumption max. 60 mA DPTE50S –50/+50 not possible DPTE100S –100/+100 not possible DPTE500S –500/+500 not possible DPTE1000S –1000/+1000 not possible DPTE100 0–100 0–250 DPTE250 0–250 0–500 DPTE500 0–500 0–1000 DPTE1000 0–1000 0–2500 DPTE5000 0–5000 0–10000 with digital display, output signal 0-10 V und 4-20 mA current consumption max. 110 mA DPTE50SD -50/+50 not possible DPTE100SD -100/+100 not possible DPTE500SD -500/+500 not possible DPTE1000SD -1000/+1000 not possible DPTE100D 0–100 0–250 DPTE250D 0–250 0–500 DPTE500D 0–500 0–1000 DPTE1000D 0–1000 0–5000 DPTE5000D 0–5000 0–10000 Type Default operating range in Pa Operating range extended by jumpers in Pa Differential pressure transmitter, 2-wire without digital display, output signal 4-20 mA current consumption max. 21 mA DPTE52S –50/+50 not possible DPTE102S –100/+100 not possible DPTE102 0–100 0–250 DPTE252 0–250 0–500 DPTE502 0–500 0–1000 DPTE1002 0–1000 0–2500 DPTE5002 0–5000 0–100008-range differential pressure transmitter with automatic re-zeroing 3-wire version without digital display, output signal 0-10 V and 4-20 mA current consumption max. 160 mA DPTAQ8 -50/+50, -100/+100, /-250/+250, -500/+500, 0–100, 0–250, 0–500, 0–1000 with digital display, output signal 0-10 V and 4-20 mA current consumption max. 210 mA DPTAQ8D -50/+50, -100/+100, /-250/+250, -500/+500, 0–100, 0–250, 0–500, 0–1000 Type Default operating range in Pa Operating range extended by jumpers in Pa without digital display, output signal 0-10 V and 4-20 mA current consumption max. 160 mA DPTA25S –25/+25 not possible DPTA25 0–25 0–50 with digital display, output signal 0-10 V and 4-20 mA current consumption max. 210 mA DPTA25SD –25/+25 not possible DPTA25D 0–25 0–50Technical data Pressure media Air, and non-combustible and non-aggressive gases. Pressure Plastic connection piece connection with 6 mm external diameter for measuring hose with 5 mm internal diameter. Connector P 1 for higher pressure, P 2 for lower pressure. Cable entry / M 20 x 1.5, screw electrical terminals for wires and connection leads with conductor cross-section up to 5–10 mm2 . Degree of IP 54 with cover, protection IP 00 without cover according to DIN 40050 Mounting Any mounting position possible, with screws supplied Materials Transmitter housing and pressure connection P2 made of ABS, light grey. Fastening element with pressure connection P1 made of POM, white. Repetition accuracy < ± 0.2% of final value Linearity and < ± 1% of end value switching differetial factor Response time switchable 100 ms/1sec Medium and am- 0°C to +50°C bient temperature Permitted air 0–95% non-condensing humidity Operating voltage 22...30 V AC/DC Power consumption Max. 1 W Output signal 0–10 V, short-circuitproof to ground 4–20 mA, short-circuitproof ≤ 30 mA Housing dimensionsDiameter and weight 85 mm x 58 mm, 130 g Standards and EN 60770, EN 61326 conformity Supplied 2 m silicone hose, accessories: 2 connection pieces with fastening screws, 2 self-tapping screws for fastening the housing |
 |
| |
| |
|
|
|
